Detailed Product Description

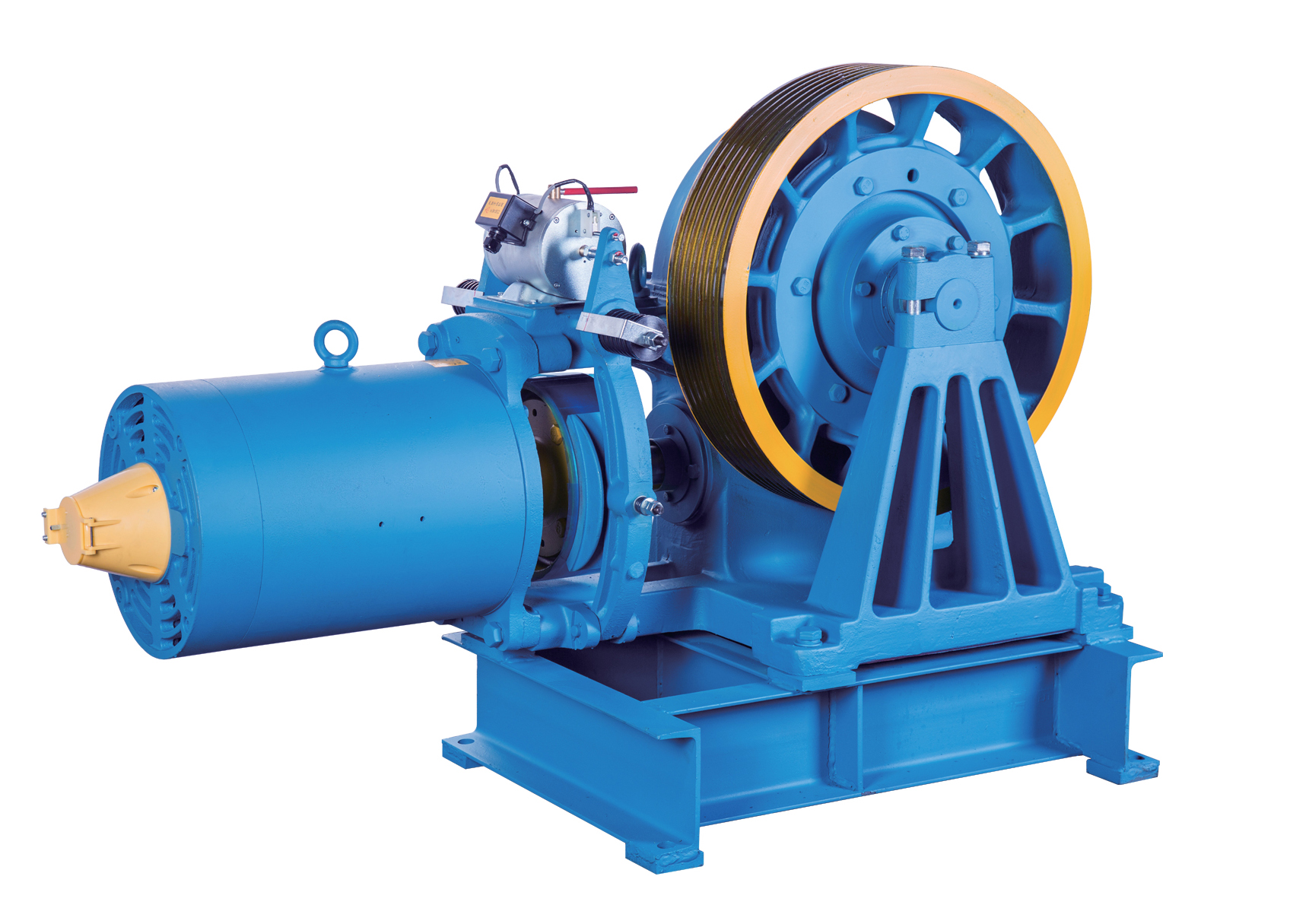

YJ245-B Geared Traction Machine
Drive: AC-2,VVVF drive
Rated speed: 0.5m/s
Rated capacity: 3000kg
Static capacity: 7000kg
Noise level: <65dB(A)
Torsional vibration: <3.0mm/s
Horizontal and vertical vibrations: <0.8mm/s
Mounting: mounted in machine room
Arrangement: right side
VVVF Drive Geared Traction Machine , 7000kg Static Capacity , YJ245-B
Number of ID | Y5200008 | Y5200010 |
Type of Machine | YJ245B-VII | YJ245B-IX |
Type of Control | VVVF | VVVF |
Rated Load (kg) | 3000 | 3000 |
Rated Speed (m/s) | 0.5 | 0.5 |
Lifting Height (m) | 50 | 50 |
Static Load (kg) | 7000 | 7000 |
Traction Ratio | 2: 01 | 2: 01 |
Reduction Ratio | 0.125694444 | 0.125694444 |
Specification of Traction Sheave | Φ 620-7-13 | Φ 620-7-13 |
Groove Spacing (mm) | 18 | 18 |
Type of Motor | YPTD180M-6 | YPTD180L1-6 |
Power(kw) | 15 | 18.5 |
Motor Speed (r/min) | 977 | 977 |
Power Source (V/Hz) | 380/50 | 380/50 |
Current (A) | 31.2 | 38 |
Brake Voltage (V) | DC110 | DC110 |
